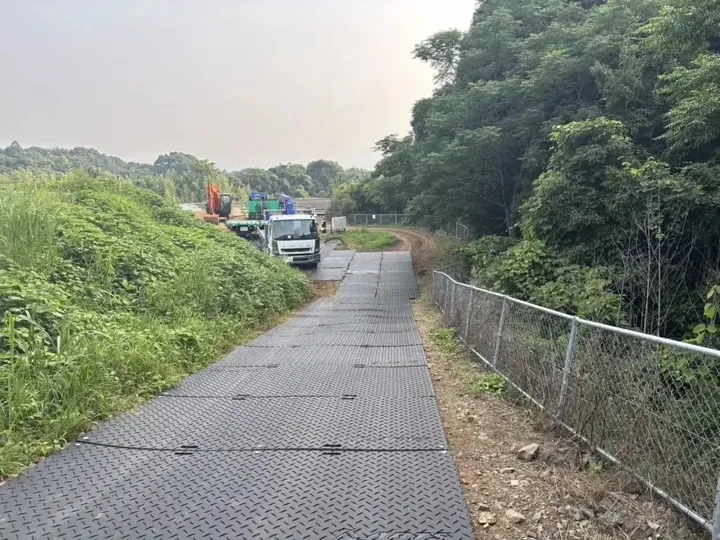

Bog mats (UK, Ireland, Australia, New Zealand) and swamp mats (US) are the same thing: heavy-duty panels that create access over waterlogged ground. In HDPE, a 1220 × 2440 mm bog mat weighs 29.7 kg at 10 mm and 268.1 kg at 70–90 mm, rated 25–280 T. Timber bog mats of the same footprint are usually 100–200 mm thick and weigh 150–350 kg, and they get heavier when wet. On soft ground, apply a 1.5 factor to equipment weight before choosing thickness.
"Bog mat" is the term that finds you in Glasgow, Perth or Auckland; "swamp mat" is the term that finds you in Texas or Louisiana. The product, the engineering and the failure modes are identical, and so is the mistake buyers make: choosing thickness from the equipment weight alone, without adjusting for the fact that bog and swamp ground is the least forgiving surface on any site.
Bog mat thickness and weight (HDPE, 1220 × 2440 mm)
| Thickness | Weight per mat | Load rating | Mats per 40HQ | Typical use on soft ground |
|---|---|---|---|---|
| 10 mm | 29.7 kg | 25–33 T | 875 | Pedestrian and light turf access only |
| 15 mm | 44.6 kg | 38–47 T | 582 | Mini plant, quad bikes, light vehicles |
| 20 mm | 59.5 kg | 52–64 T | 436 | Excavators, telehandlers, 4×4 access |
| 25 mm | 74.4 kg | 65–78 T | 349 | Trucks, mobile cranes |
| 30 mm | 89.3 kg | 80–95 T | 291 | Dumpers, rigs, loaded tippers |
| 35 mm | 104.2 kg | 92–110 T | 249 | Heavy plant on wet ground |
| 40 mm | 119.1 kg | 105–125 T | 218 | Crane pads, mining equipment |
| 50 mm | 148.9 kg | 130–155 T | 174 | Haul trucks, semi-permanent pads |
| 60 mm | 178.7 kg | 160–185 T | 145 | Mining haul roads |
| 70–90 mm | 268.1 kg | 190–280 T | 96 | Ultra-heavy pads, raft platforms |
Panel weight matters more on soft ground than anywhere else, because a bog mat that two workers can carry is a bog mat you can reposition when the ground gives way. Up to 15 mm the panels are genuinely hand-portable; from 20 mm most crews want a trolley or a machine; from 50 mm you are into crane territory. The full weight maths is in the crane mat weight calculator.
Where bog mats sit among soft-ground materials
| Material | Thickness | Weight per 4 × 8 ft | Behaviour in water | Lifespan |
|---|---|---|---|---|
| HDPE bog mats | 10–90 mm | 29.7–268.1 kg | 0% water absorption — nothing changes | 20+ years, 100% recyclable |
| Timber / hardwood bog mats | 100–200 mm | ~150–350 kg | Absorbs water, gains weight, rots | Consumable; degrades with UV and rot |
| Rubber mats | Thin gauge, flexible | Heavy for the rating | Water-tolerant but low stiffness | Moderate; limited load rating |
| Aluminium trackway | Panel systems | High strength-to-weight, high cost | Corrosion-resistant, needs crane to place | Long, but costly per m² |
| Steel road plates | 10–25 mm | ~467 kg at 20 mm, ~584 kg at 25 mm | Rust residue, slippery when wet | Long but corrosion-limited |
The comparison that decides most bog mat enquiries is HDPE versus timber. Timber is cheaper per panel and that is the whole of its advantage: it is thicker to reach a comparable rating, far heavier per panel, it soaks up water and changes weight on site, it needs preservatives, and it does not come back to you as a reusable asset. HDPE gives the same load rating in a fraction of the thickness with no water absorption at all. See composite vs timber mats for the head-to-head, and aluminium trackway panels if you are comparing against the heavy structural end of the market.
The soft-ground factor: why 1.5 changes the answer
Bog and swamp ground has low bearing capacity, and a mat on low-bearing ground is carrying more of the load than the machine's nameplate suggests. RUIYANG's calculator expresses that as a multiplier on equipment weight: firm 1.0, grass 1.15, sand 1.3, mud or swamp 1.5. It then returns the thinnest grade whose third-party verified rating covers the result.
The 1.5 factor is aggressive by design, because the consequences of under-specifying on soft ground are worse than on firm ground: a sunk machine means winching, downtime and sometimes damaged mats too. Here is what it produces for three typical bog and swamp enquiries on a 1.5 factor:
| Equipment | Required load @ 1.5 | Calculator result | Safety margin | Practical specification |
|---|---|---|---|---|
| 20 t excavator on mud | 30 t | 10 mm (25–33 T) | 9.1% | Step up to 15 mm |
| 40 t excavator on mud | 60 t | 20 mm (52–64 T) | 6.3% | Step up to 25 mm |
| 60 t rig on mud | 90 t | 30 mm (80–95 T) | 5.3% | Step up to 35 mm |
Notice the pattern: on mud the step-up prompt fires in all three cases. That is not the calculator being conservative for its own sake — it is arithmetic. A 1.5 factor pushes the required load close to a grade boundary almost every time, and the margin left over is exactly the headroom that a rut, a soft spot or a standing-water pocket will consume on the first pass. If you ignore the prompt you will be inside the rating on paper and outside it on site.
Load a soft-ground scenario
Each button opens the calculator with the ground condition already set to mud — change the weight, the route or the surface to see how the answer moves.
Designing a bog mat pad, not just a road
On genuinely waterlogged ground the matting stops being a road and becomes a raft. Three adjustments matter:
- Lock everything. Panels that are not connected creep apart under tracked steering, opening gaps that the ground then eats. Use interlocking pins or bolts across the full surface — see 2-way vs 4-way connectors.
- Widen the bearing area. A raft spreads load over far more ground than a single-width track. Widening from one panel to two is usually cheaper than doubling thickness.
- Plan the exit. Bog mats are only useful if you can take them out again. Overlap the leading edge, keep the joints accessible, and avoid burying panels in the surface material.
If you are working on protected wetland or peat with reinstatement obligations, the reusable and inert nature of HDPE is the practical advantage: nothing leaches, nothing rots in place, and the surface underneath is unchanged when the mats come up. See wetland and swamp mats and preventing stuck-in-mud for the field techniques.
Do muddy mats really work?
Yes, and the reason is area rather than thickness. A machine that sinks is one whose ground pressure exceeds the soil's bearing capacity; a bog mat converts a narrow track or tyre contact patch into a large, flat, rigid plate, dropping contact pressure by an order of magnitude. That is why a 20 mm HDPE mat rated 52–64 T can carry plant that would otherwise need 150 mm of timber — the mechanism is load spreading, not mass.
What mats cannot do is create bearing capacity that is not there. On liquid, bottomless ground you need either enough raft area to float on top or a proper engineered platform. The calculator's "custom" response above 280 T is that boundary: beyond it, the answer is a design, not a catalogue panel.
Frequently Asked Questions
What is the difference between bog mats and swamp mats?
They are the same product category under different regional names. Bog mats is the UK, Ireland, Australian and New Zealand term; swamp mats is the US term. Both describe heavy-duty panels laid over soft, waterlogged ground to create a working platform or access route.
How much does a swamp mat weigh?
A 1220 × 2440 mm HDPE swamp mat weighs 29.7 kg at 10 mm, 59.5 kg at 20 mm, 89.3 kg at 30 mm, 148.9 kg at 50 mm and 268.1 kg at 70–90 mm. Timber swamp mats of the same footprint are typically 100–200 mm thick and weigh 150–350 kg, and they gain further weight when wet.
What thickness bog mat do I need?
On soft ground apply a 1.5 factor to the equipment weight first. A 20 t excavator becomes a 30 t requirement, which lands in the 10 mm grade (25–33 T) but with only 9.1% margin, so 15 mm is the practical choice. A 40 t machine becomes 60 t and needs 20–25 mm; a 60 t machine becomes 90 t and needs 30–35 mm.
Are plastic bog mats better than timber bog mats?
For repeated use, yes. HDPE bog mats absorb 0% water, so they keep their weight and rating in standing water; they do not rot, splinter or need preservatives; they reuse for 20+ years; and they are 100% recyclable. Timber bog mats are cheaper per panel but are consumable, get heavier when wet and degrade under UV and rot.
Do HDPE bog mats sink in swamp?
They float, but that is not the design intent — the goal is to spread the load across a large contact area so the machine does not break through the surface. On genuinely liquid ground, specify the heavier 40–70/90 mm grades and lock panels into a continuous raft, and consider temporary support piles or a composite platform for the largest plant.
Why does the calculator suggest stepping up a grade on mud?
Because the margin falls below 10%. Soft ground consumes headroom through rutting, partial bearing and standing water, so a grade that only just covers the calculated load has nothing left for site conditions. Stepping up one thickness grade restores the margin.
